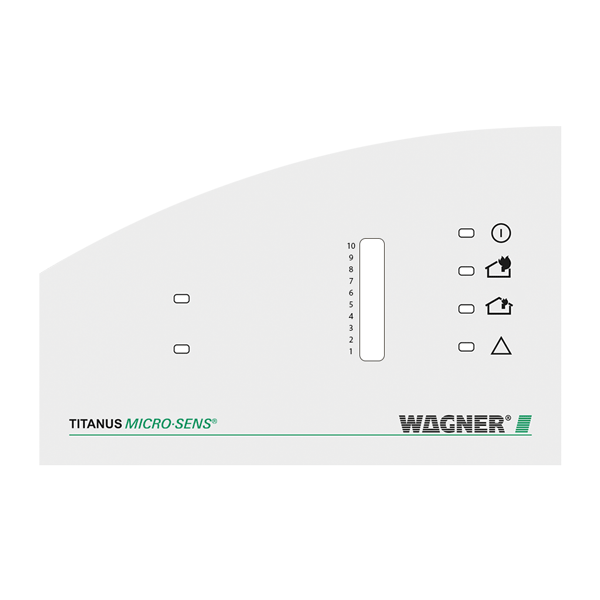

TITANUS MICRO·SENS Front Film Sheet
AD-10-1400
Overview
The TITANUS MICRO·SENS ® is a compact and cost-effective solution for protecting facilities and spaces up to 400 square meters, as well as rail vehicles. The aspirating smoke detector offers numerous features, optional network capability and can be used in applications with temperatures as low as -40 degrees Celsius. In addition, the optional ROOM·IDENT single-room detection system enables precise fire location.
The MICRO·SENS aspirating smoke detector system consists of the detection unit (35222), a device base (35256) and an adhesive front film sheet (35257).
Features:
- Up to 400 m² monitoring area
- Response sensitivity as low as 0.01% LT/m
- LOGIC·SENS ® fire pattern recognition protects against false alarms.
- Optional smoke level display, pre-alarm, Ethernet (SNMP) connection, 2GB data logger
- Fire location via ROOM·IDENT. It enables to monitor up to 5 rooms or facilities and to identify the source of the alarm.
- Operating temperature range from -40°C to +60°C
- Compact design, small footprint
- Early detection of breaks and blockages in the pipe system using PIPE·GUARD
- Approved by DIBt.
TITANUS MICRO·SENS® is available in a cold storage option, with a redundant fan, or as a detector box. The detector box option does not have its own fan and can be used in combination with TITANUS® systems to localise the sampling hole where the smoke is entering.
