Blustream Wireless Multi-Format Presentation

WMF51

Features:

• 4K multi-format multi-view presentation switch
• Features AirPlay, Miracast®, Chromecast® and Blustream wireless dongle support which can be switched to a single HDMI output
• Multiview presentation with up to 4 concurrent video signals with configurable screen layout
• In-built video scaler with output timing up to 4K 60Hz 4:4:4
• Localised 2.4G/5G WiFi hotspot to host AirPlay, Miracast® and Chromecast® local point-to-point mode (up to 1080p)
• Dual LAN connection for integration to existing network infrastructures
• Supports USB 3.0 touch-back feature via WMF-USBC / WMF-HDMI dongles and Miracast®*
• Audio breakout to analogue L/R audio
• Web interface module for control and configuration of unit
• OSD control with preview function
• Whiteboard and screen overlay annotation feature
• Control via front panel, RS-232 and TCP/IP with manual or auto source selection
• Features Class 0 IEEE 802.3af PoE for powering of product from a PoE switch

*Miracast touch-back compatibility subject to Windows features. USB 3.0 connection is for connectivity to an interactive display for touch-back capabilities only, and does not feature the full USB 3.0 bandwidth capabilities for use with VC / UC equipment.

Overview:

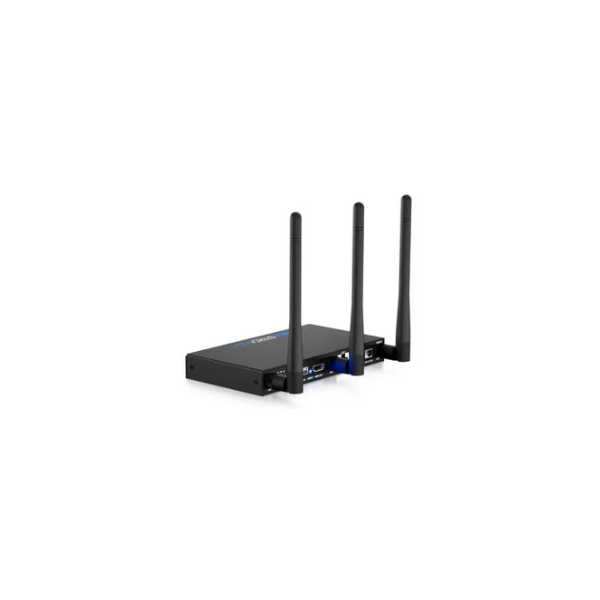

The WMF51 is a 4K multi-format presentation switch featuring AirPlay, Miracast® and Chromecast® inputs to a single HDMI output. The WMF51 provides enhanced features including multi-view presentation, video scaling, a web-GUI for control and configuration, localised 2.4/5G WiFi hotspot and dual LAN connectivity.

The WMF51 also features OSD control, USB touch-back to connected host device, whiteboard and screen overlay annotation, with manual or automated source selection. The WMF51 can be controlled via front panel, RS-232 or TCP/IP.

The WMF51 is also compatible with Blustream WMF-USBC and WMF-HDMI plug and play wireless dongles, providing an ideal BYOD solution for your boardroom, classroom, or huddle-space application.
