HEX100ARC-TX-V2
100m HDBaseT™ Transmitter
The HEX100ARC-TX-V2 is a 4K HDBaseT™ transmitter delivering HDMI with HDCP 2.2 support, bi-directional IR, RS-232 and PoC (Power over Cable) up to lengths of 100m over a single CAT cable.
The HDBaseT™ transmitter also features a HDMI loop-out, ARC via HDMI or optical (S/PDIF) and LAN serving to a compatible HDBaseT™ receiver or matrix.
Box Contents
1 x HEX100ARC-TX-V2
1 x Mounting Kit
1 x User Manual
Key Features
- Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
- Extends HDMI up to a distance of 100m over single CAT cable
- Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4,and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal display
- Features 1 x HDMI loop out for integrating local displays or cascading to multiple devices
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Bi-directional RS-232 pass-through
- Bi-directional IR from all input and output locations
- Bi-directional PoC (Power over Cable) to power extenders from either Blustream matrix products or transmitter end
- HDCP 2.2 support

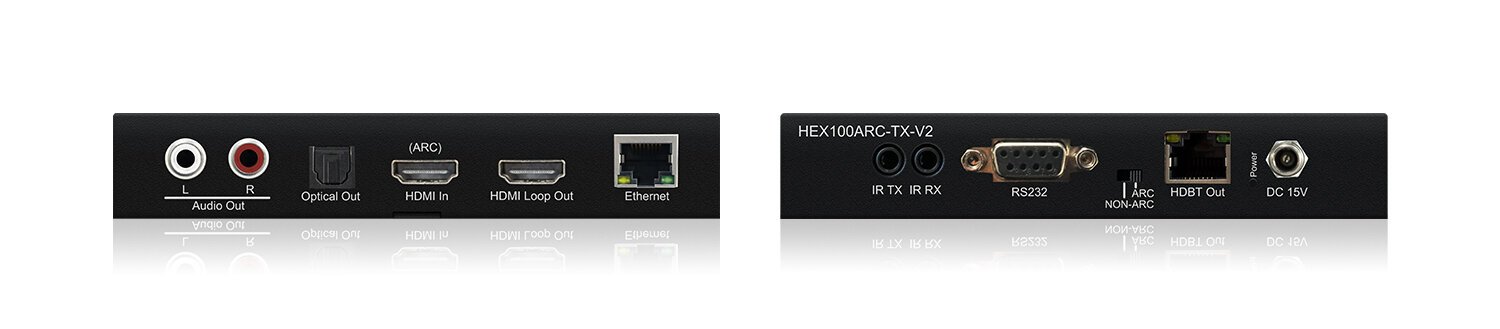

- Video Input Connectors: 1 x HDMI Type A, female
- Video Output Connectors: 1 x HDBaseT RJ45 connector, 1 x HDMI Type A, female
- Audio Output Connectors: 2 x RCA (L/R), 1x Optical (SPDIF)
- Ethernet Port: 1 x RJ45 connector
- RS-232 Serial Port: 1 x DB-9 female
- IR Input Ports: 1 x 3.5mm stereo jack
- IR Output orts: 1 x 3.5mm mono jack
- 2 x Mounting Bracket
- Ind. Unit Dimensions (W x D x H): 143mm x 135mm x 25mm (TX), without connections
- Ind. Unit Dimensions (W x D x H): 143mm x 140mm x 25mm (TX), with connections
- Box Dimensions (W x D x H): 340mm x 285mm x 60mm
- Shipping Weight (Kit): 0.9kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Power Supply: 1 x 15V/2A DC, screw type connector
